8cbm Concrete Mixing Truck
INTRODUCTION
8cbm Concrete Mixing Truck is equipped with all-steel radial tyre as standard, which features high loading capacity, low rolling resistance, nice wear resistance, and good puncture-proof performance. The concrete mixer machine transportation tank mix tube and 4.5 T dump truck chassis with 2 u-bolt and special mat iron can be firmly installed one ,and form the concrete transport tank.the main use is to transport mixtrue concrete to destination on time and quickly.this tank also can be used as mixing drum.
Hot Sale in stock: 2m3 Concrete mixer Truck - HMC3.5 Self-loading Concrete Mixing Truck - 4m3 Concrete Mixing Truck - 6m3 Concrete Mixing Truck - 8m3 Concrete Mixing Truck - 10m3 Concrete Mixing Truck - HMC1.5 Self-loading Concrete Mixer - HMC4.0 Self-loading Concrete Mixer Get quote or inquiry!
- hamacchina
- 0086-371-86525099
- [email protected]
- 0086-15136236223

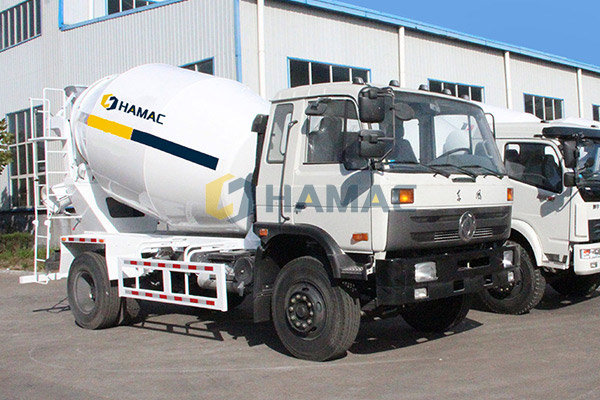

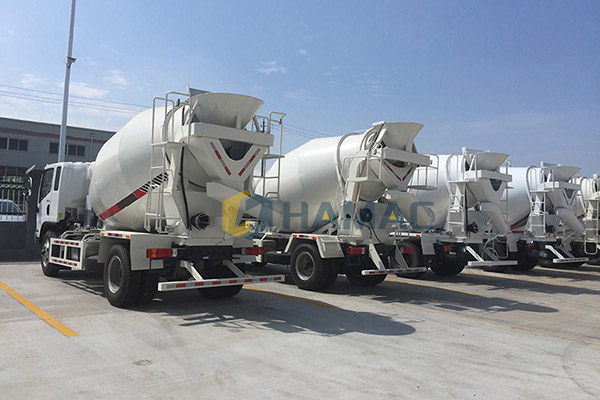

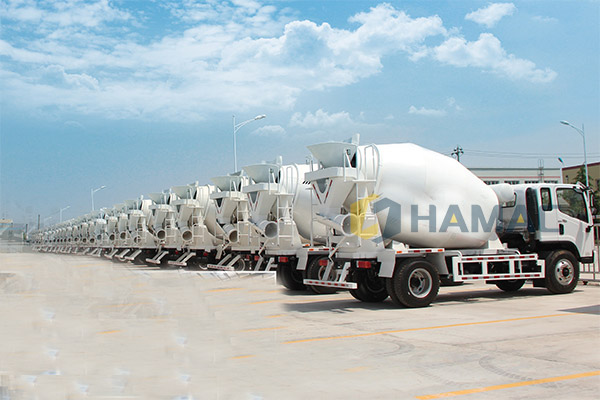

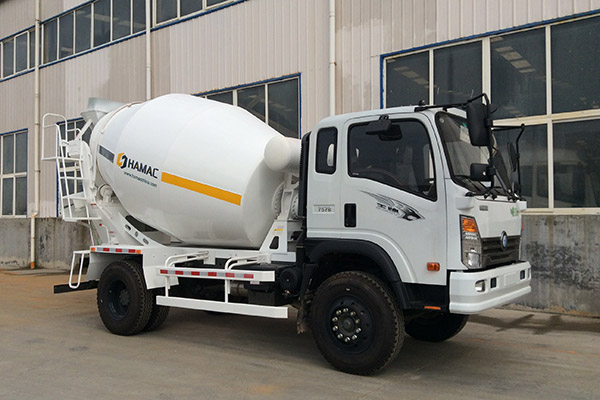

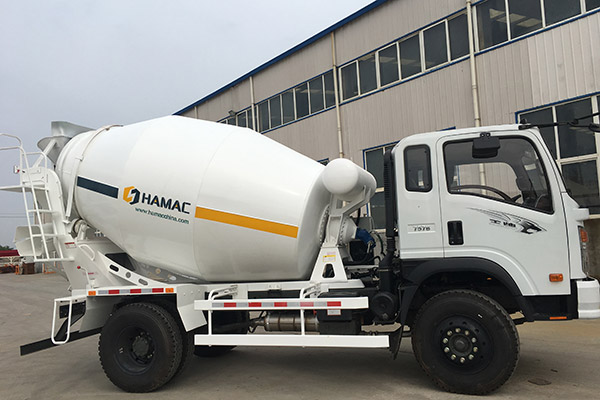

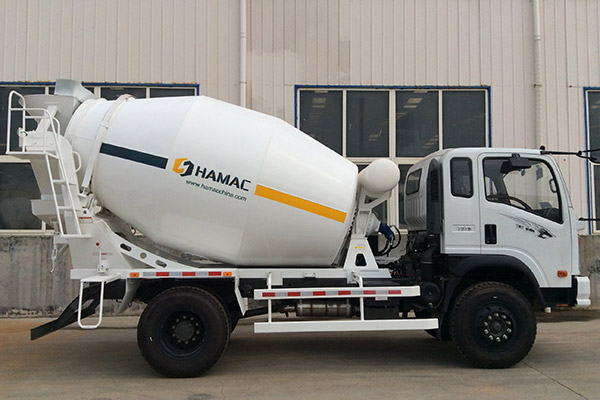

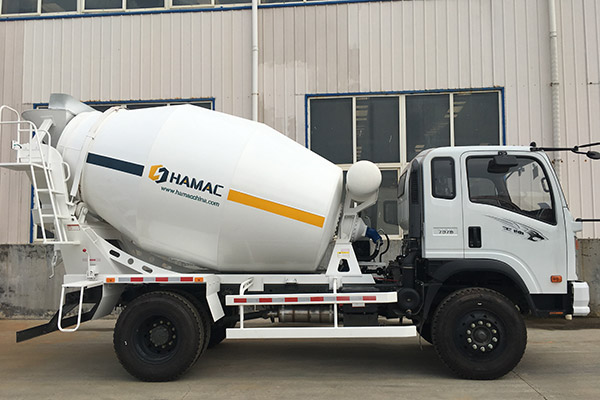

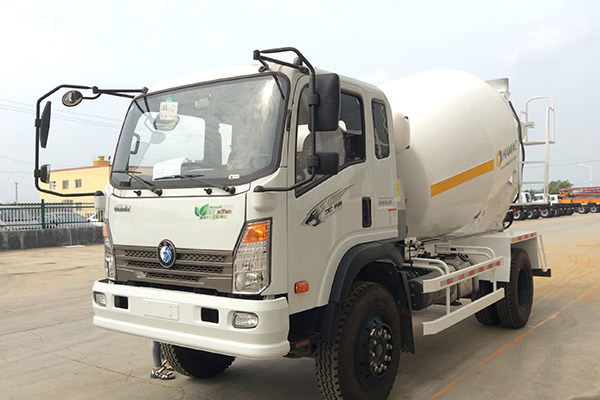

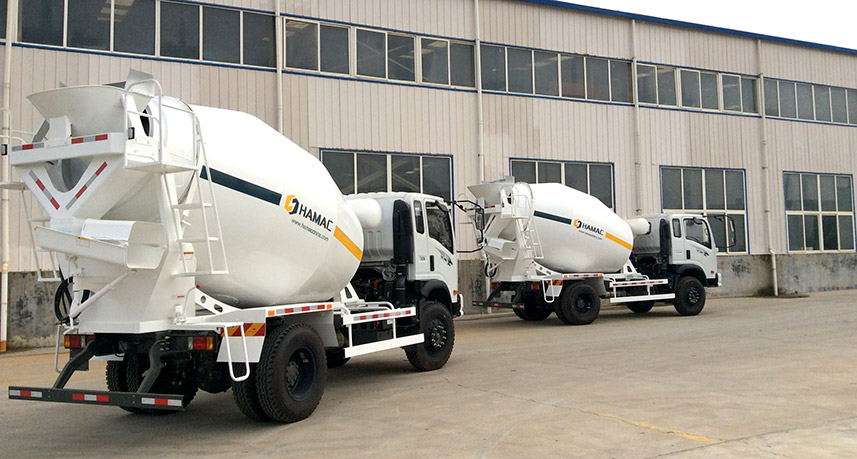

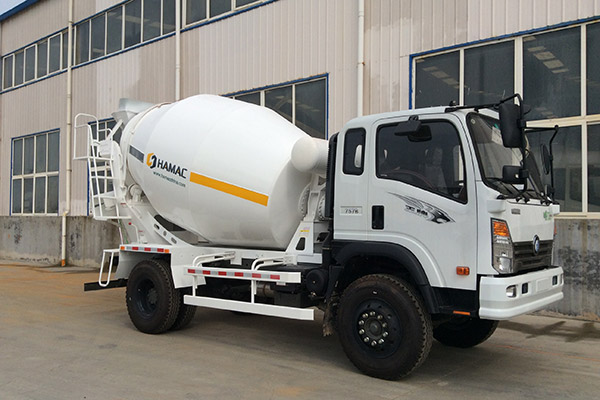

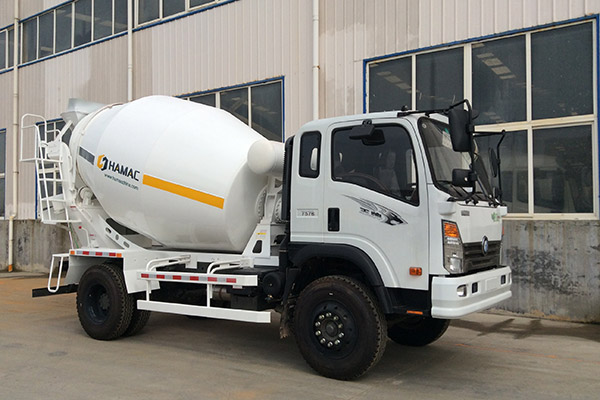

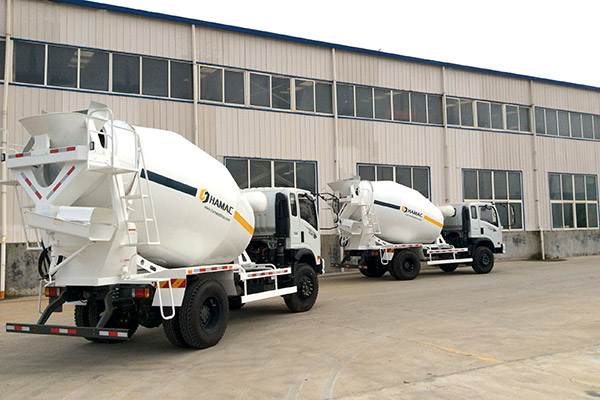

Detailed Photos
Performance
1. The whole truck is convenient and stable with strong intensity. Sperical purpose chassis is specially designed for rural market, even narrow country road can be easily handled;
2. Concrete mixing tank with superior performance, optimized design of concrete mixing tank, improve loading ability, mixing on average without separation;
3. The blade has unique wear-resisting protection structure, improving blade service lift 80%;
4. The design of low angle of inclination. Center of gravity is lower than similar concrete transit mixer at 5%, safety factory higher 10%;

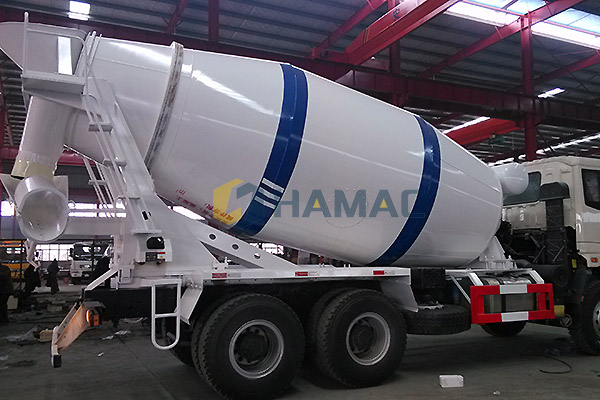

Manufacturing Process
Specification
| Capacity | 8m3 |
| Chassis brand | FAW/FOTON/DFAC |
| Chassis Demission（mm） | 8300×2470×2850 |
| Wheelbase（mm） | 3850+1300,4150+1300 |
| Number of axles | 3 |
| Track front（mm） | 1980 |
| Track rear（mm） | 1860/1860 |
| Front overhang（mm） | 1250/2300 |
| Rear overhang （mm） | 1250/2850 |
| Approach angle/Departure angle | 34/15,34/13 |
| Tyre Number | 10 |
| Tyre Size | 10.00-20,11.00-20 |
| Plate Spring Number | 9 10 |
| Fuel | Diesel |
| Engine emission standard | National IV |
| Engine brand | YUCHAI |
| Power | 215kw/290HP |
| Engine Rated speed（r/min） | 2800 |
| Engine Idle speed（r/min） | 700~750 |
| Clutch | Biplate Dried constant joint |
| Transmissions type | Shaft drive transission |
| Drive mode | Rear Wheel Drive |
| Turning form | Hydraulic power steering |
| Service brake | Air-brake |
| Parking braking | Air brake braking |
| Max. speed(km/h) | 85 |
| Concrete mixing truck Demission（mm） | 8700,9550×2500×3760,3880 |
| Mixing volume（m³） | 8 |
| Feeding rate（m³/min） | ≥2 |
| Discharging rate（m³/min） | ≥1.5 |
| Drum rotation speed（r/min） | 3~9 |
| Discharging remnant rate | ≤0.1% |
| Water supply mode | Air pressure supply |
| water tank volume（L） | 200 |
| Radiator | 24v air-cooled |
| Reduction box | Fuxin |
| Motor | Interpump |
| Hydraulic pump | Interpump |
